Mazdaspeed 3.5" Intake

Installing numerous different larger intakes over the years, we wanted to fix a lot of short comings we came across with other intake brands.

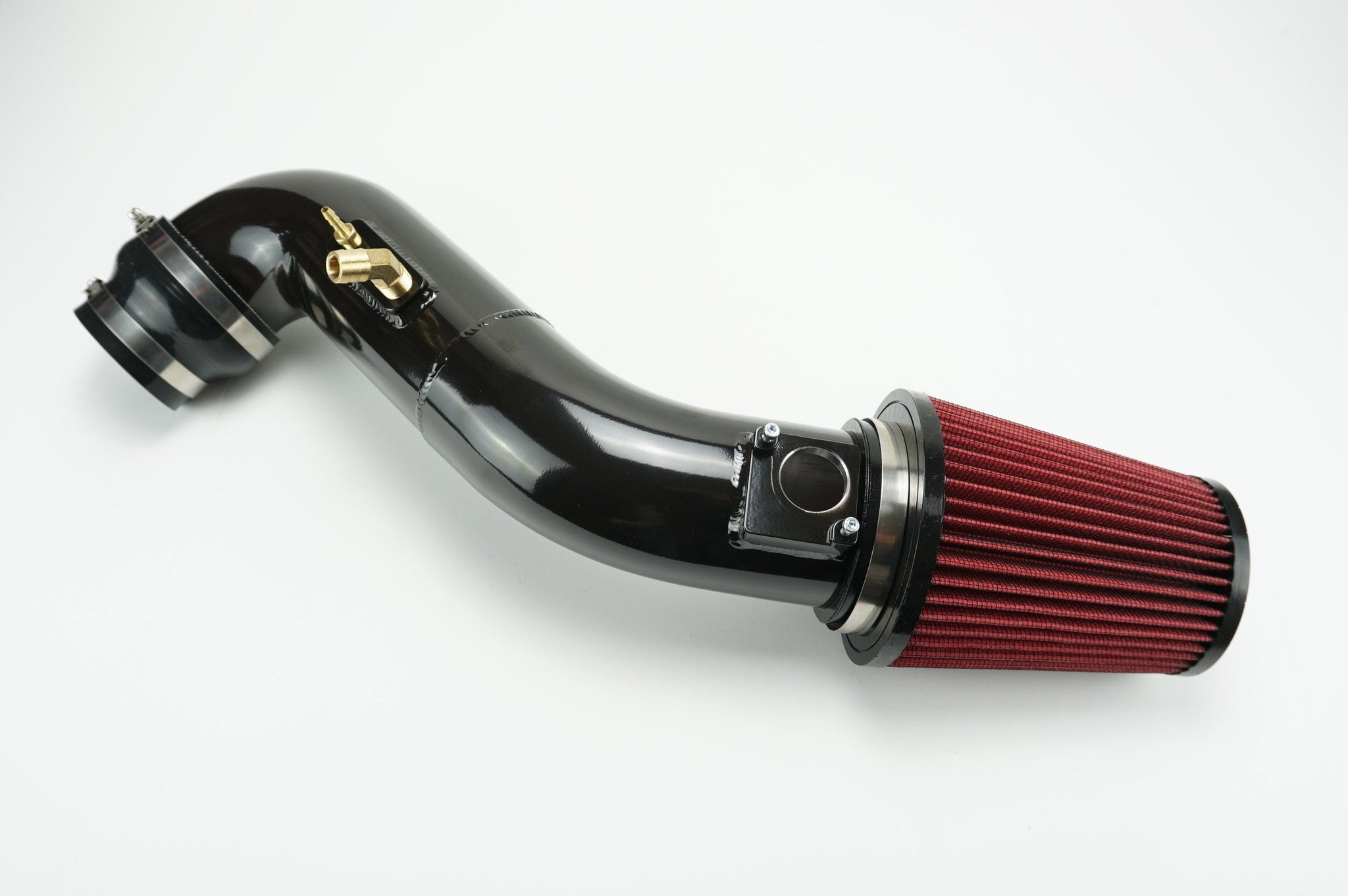

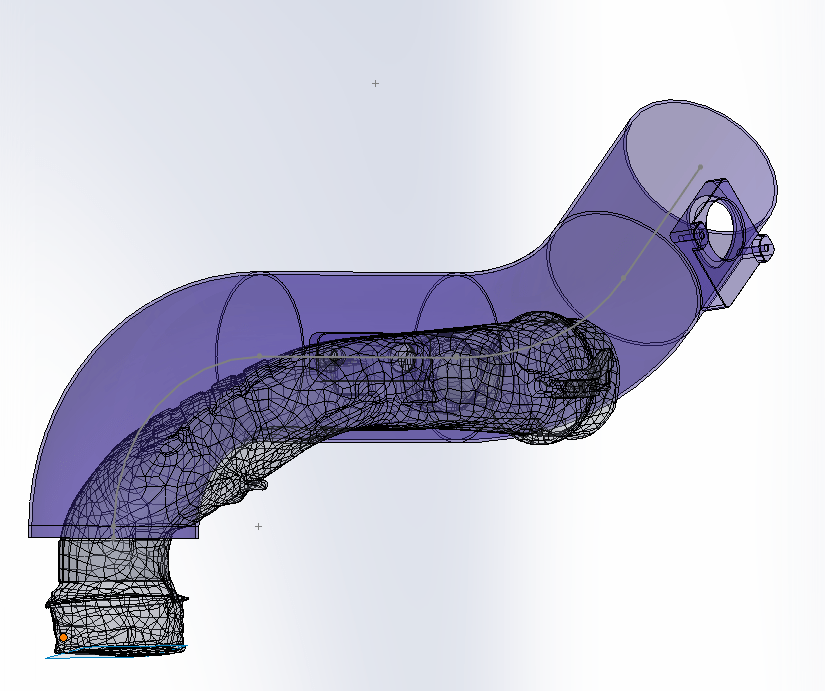

We started our design by 3D scanning a factory intake and turbo inlet pipe. One of our main goals with this intake was fitment, and having the exact dimensions of the factory intake allowed us to engineer a better fitting and easier to install intake. The Damond Motorsports 3.5" intake features a tight-radius mandrel-bent 90° pipe going to the turbo. Using this pipe allows for a much better fitting and sealing intake-to-turbo connection, and makes the install much easier.

Keeping the intake lightweight was also a priority. We ditched the idea of a separate MAF housing and kept this all a 1-piece design. Less components means less weight, and less of a chance for leaks. We also omitted the BPV recirculation tube to reduce weight, reduce leak points, and make for an overall more compact and sleek design.

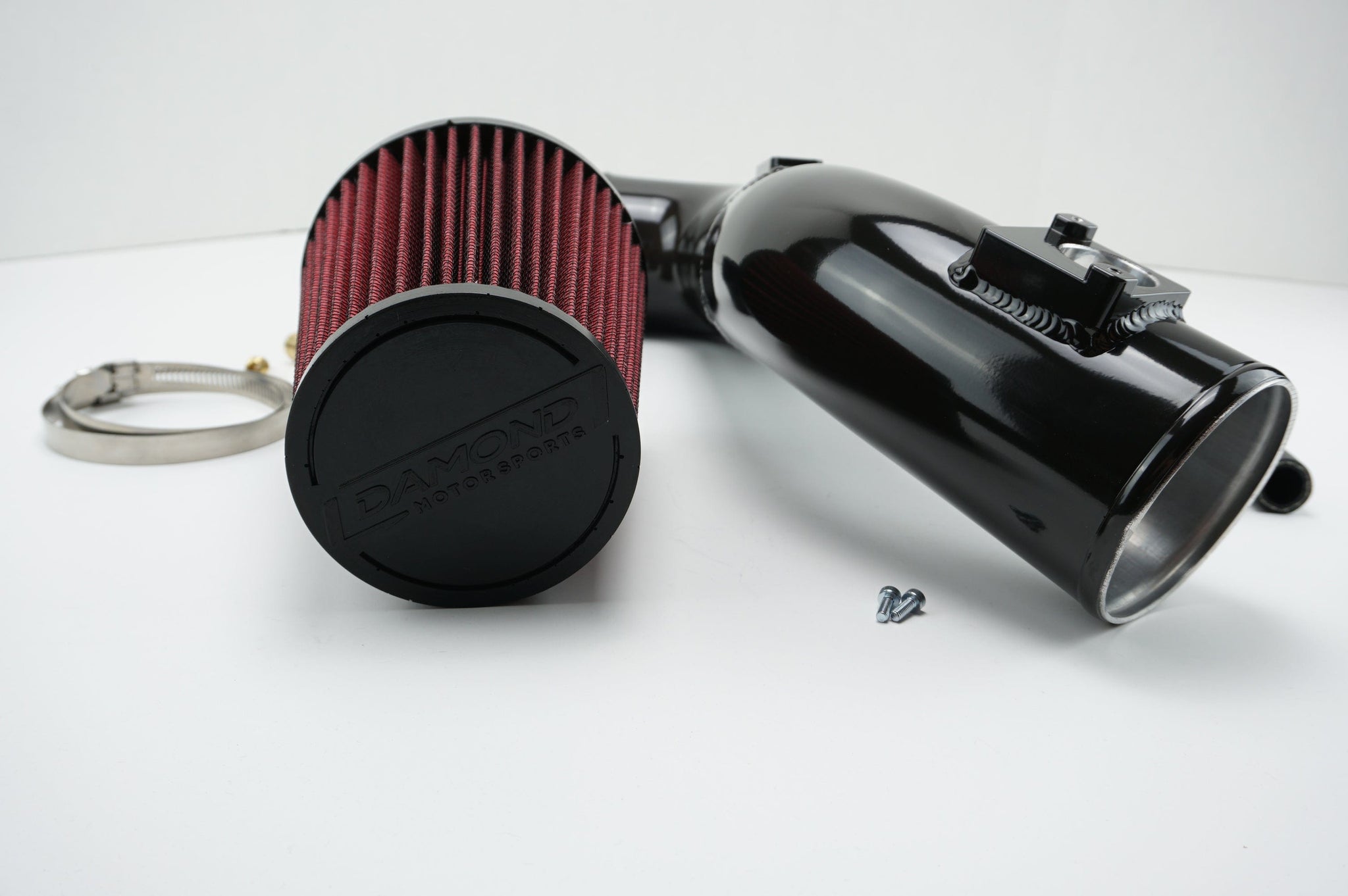

For filtration, we utilize an American made, pre-oiled, and woven-cotton media filter which traps particles as small as 5 microns, and allows for more airflow compared to dry media filters.

If you have a Mazdaspeed3 this intake will fit with the factory battery box with the ECU relocated or by modifying the battery box mounting holes. For the Mazdaspeed6, the battery tray can be modified to fit the intake. Optionally on both cars, a smaller battery and mount can be used to allow for more room.

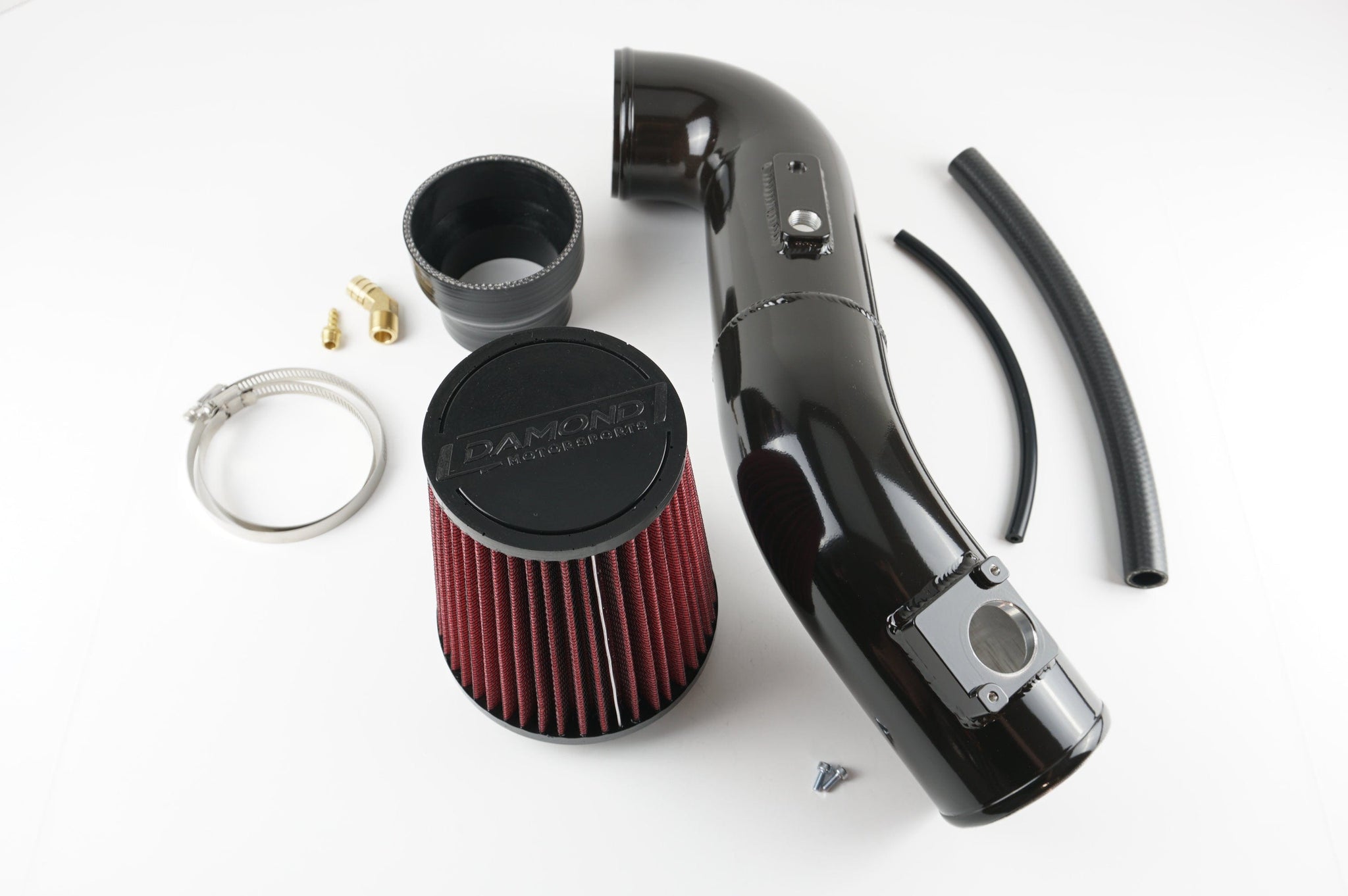

We also include a new MAF o-ring with each intake.

Please note: MAF calibration and tuning is required. This is a non-recirc intake, where a blow-off-valve (BOV) is required. We offer a Go Fast Bits BOV here or a TurboSmart BOV here. May not fit with some FMIC hot piping.

Here's common turbo sizes, so you know which coupler to select:

2.25"

• Stock K04
• BNR S1
• BNR S2
• BNR S3
• CST4
• Some hybrid turbos

2.5"

• BW EFR 6258
• BW EFR 6758
• Some hybrid turbos

3"

• Many Garrett turbos
• BW EFR 7163

3.5"

• BNR S4
• BNR S5
• BNR S6

4"

• Many Garrett turbos
• Many Precision turbos
• CST5
• CST6

Proudly made the in the USA! Free shipping within the US!
